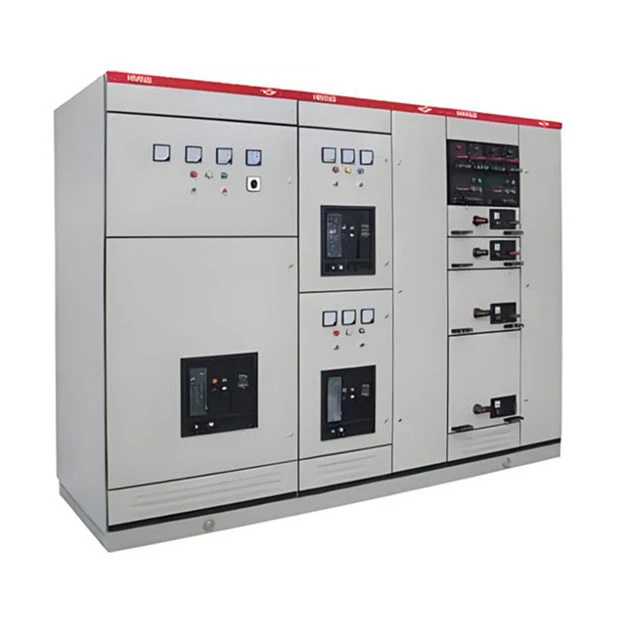

Power Distribution Cabinet

Custom Power Distribution Cabinet Manufacturer

Power distribution cabinets are essential for safely distributing electrical power while protecting equipment and personnel in industrial and commercial facilities. As a professional manufacturer, we design and produce customized low-voltage distribution cabinets, motor control cabinets, switchboards, and electrical control panels that comply with IEC and international electrical standards.

Parameter

Operation Voltage	Low Voltage
Application Range	Power Plants
Shell Protection Grade	IP30
Rated Voltage	3.6, 7.2, 12 Kv

Product Categories

Low Voltage Switchgear & Main Distribution Switchboards (MDB)

Engineered for main power incoming and distribution in heavy industrial plants, commercial complexes, and data centers.

Rated Voltage: Up to 1000V AC / 1500V DC

Rated Current: Up to 6300A

Features: Modular design, high short-circuit withstand capacity, arc-fault containment.

Sub-Distribution Boards (SDB) & Panel Boards

Ideal for secondary power distribution across factory floors, commercial buildings, and infrastructure projects.

Rated Voltage: 230V / 400V / 690V

Rated Current: 63A to 1250A

Features: Compact footprint, flexible circuit breaker layout, easy maintenance.

Industrial Control Cabinets & PLC Panels

Custom-built automation and motor control centers (MCC) integrated with PLCs, VFDs, and smart monitoring systems.

Enclosure Types: Wall-mount & Free-standing

Features: Climate control options (AC/Heat exchangers), EMC shielding, clean wiring layout.

Weatherproof & Outdoor Distribution Cabinets

Heavy-duty enclosures engineered specifically for harsh environments, renewable energy farms, and municipal infrastructure.

Protection Rating: IP65 / IP66 / NEMA 4 & NEMA 4X

Material Options: Stainless Steel (304/316L) or Galvanized Steel with UV-resistant powder coating.

Key Advantages of Our Power Distribution Cabinets

Unhcompromised Electrical Safety

Built with arc-proof structures, high-grade insulation, and reliable interlocks to protect both operators and downstream machinery.

Global Component Flexibility

Fully integrated with world-leading electrical component brands (Schneider Electric, ABB, Siemens, Eaton) or high-quality cost-effective alternatives upon request.

Robust Environmental Protection

Superior sealing technology and anti-corrosion surface treatments ensure reliable operation in high humidity, coastal, or dust-heavy conditions.

Engineered for Longevity

Constructed using premium cold-rolled steel and high-purity T2 copper busbars for reduced temperature rise and maximum lifespan.

Custom Power Distribution Cabinet Options

Custom Option	Description
Cabinet Size	Custom dimensions and enclosure configurations.
Material	Carbon steel, stainless steel, or aluminum.
Protection Rating	IP54 to IP67 for different environments.
Surface Finish	RAL colors and powder coating options.
Internal Layout	Mounting plates, DIN rails, busbars, and component arrangement.
Cable Entry	Top, bottom, or side cable entry with customized openings.
Door & Lock	Single or double doors, window panels, and lock options.
OEM Branding	Logo printing, nameplates, labels, and custom packaging.

Applications

01/

Commercial Buildings
Designed for office buildings, shopping malls, hotels, hospitals, schools, and other commercial facilities requiring centralized power distribution.

02/

Industrial Manufacturing
Used in factories, production lines, warehouses, and processing plants to distribute power and protect electrical equipment.

03/

Renewable Energy Systems
Integrated into solar PV plants, wind farms, and energy storage systems for AC/DC power distribution and equipment protection.

04/

Data Centers
Provides reliable power distribution for server rooms, UPS systems, network equipment, and mission-critical infrastructure.

Manufacturing Strength

Advanced CNC Production Line

Equipped with high-precision laser cutting machines, CNC turret punches, automated bending centers, and robotic welding units.

In-House Surface Treatment

Automated eco-friendly phosphating and powder coating lines guarantee superior paint adhesion and 1000+ hour salt spray corrosion resistance.

Engineered Capacity

Over 12,000 m² production facility with an annual capacity exceeding 15,000 sets of distribution enclosures and switchgear assemblies.

Quality Assurance & Testing

Incoming Quality Control (IQC): Chemical and conductivity testing for copper busbars; strict inspection of incoming breakers, relays, and meters.

In-Process Quality Control (IPQC): Real-time monitoring of enclosure dimensional accuracy, coating thickness, and torque checks on electrical busbar connections.

Final Quality Control (FQC / FAT): Every cabinet undergoes a comprehensive Factory Acceptance Test (FAT) including:

Power-frequency dielectric voltage withstand test
Insulation resistance measurement
Mechanical operational check of all interlocks and breakers
Complete wiring continuity & functional simulation test

Traceable Testing Documentation: A certified FAT report and wiring diagram are included inside every shipped cabinet.

Certifications

Manufactured under ISO 9001 quality management, with CQC certification and other certifications available according to project requirements.

FAQ

Q: What is the difference between a power distribution cabinet and a distribution box?

A: A power distribution cabinet is generally larger and designed for higher current capacities and industrial applications, while a distribution box is typically used for smaller commercial or residential electrical systems.

Q: Where are power distribution cabinets commonly used?

A: Power distribution cabinets are widely used in factories, commercial buildings, data centers, power plants, renewable energy projects, water treatment facilities, mining sites, and transportation infrastructure.

Q: How do I choose the right power distribution cabinet?

A: The selection depends on operating voltage, current rating, installation environment, IP protection level, enclosure material, internal components, and project-specific requirements.

Q: What enclosure materials are available?

A: Power distribution cabinets are commonly manufactured from carbon steel, galvanized steel, stainless steel (304/316), or aluminum. The material should be selected according to the installation environment and corrosion resistance requirements.

Q: What IP ratings are available for power distribution cabinets?

A: Standard protection ratings include IP54, IP55, IP65, IP66, and IP67. The required IP rating depends on whether the cabinet is installed indoors, outdoors, or in harsh industrial environments.

Q: Can power distribution cabinets be customized?

A: Yes. Most manufacturers offer OEM and ODM services, including custom dimensions, enclosure materials, internal layouts, cable entry designs, colors, branding, and electrical component integration.

Q: What electrical components can be installed inside a power distribution cabinet?

A: A power distribution cabinet can be configured with circuit breakers, MCCBs, MCBs, contactors, relays, busbars, surge protection devices, meters, terminals, PLCs, and other control components.

Q: How can I ensure the quality of a power distribution cabinet?

A: Choose a manufacturer with in-house production, strict quality control, and compliance with international standards. Factory testing, material inspection, and complete documentation help ensure reliable product performance.

Q: How can I request a customized power distribution cabinet?

A: Simply provide your electrical drawings, technical specifications, or project requirements. Our engineering team can recommend a suitable solution and support the project from design and prototyping to mass production.

As one of the most professional power distribution cabinet manufacturers and suppliers in China, we also support customized service. Please feel free to wholesale discount power distribution cabinet in stock here from our factory. Quality products and low price are available.
